Big Bag Packing Machine

China's factory price---Big bag packing machine

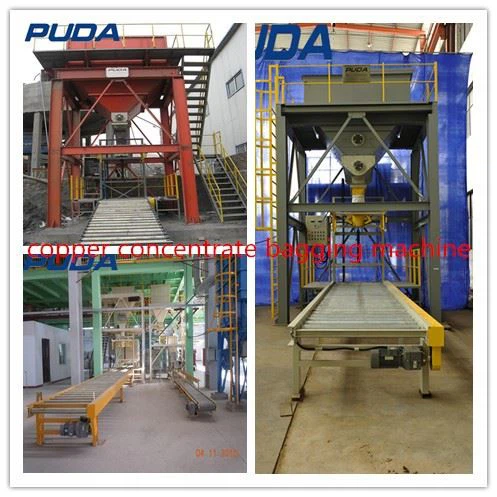

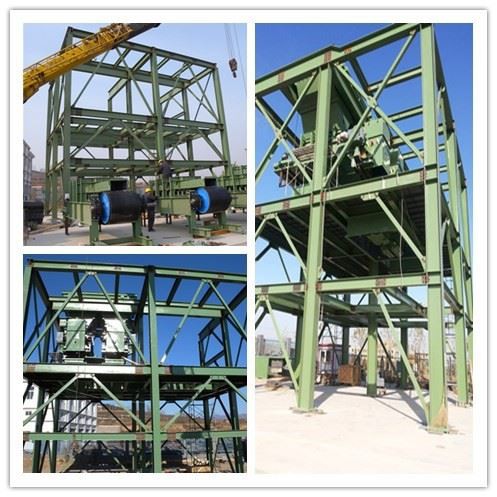

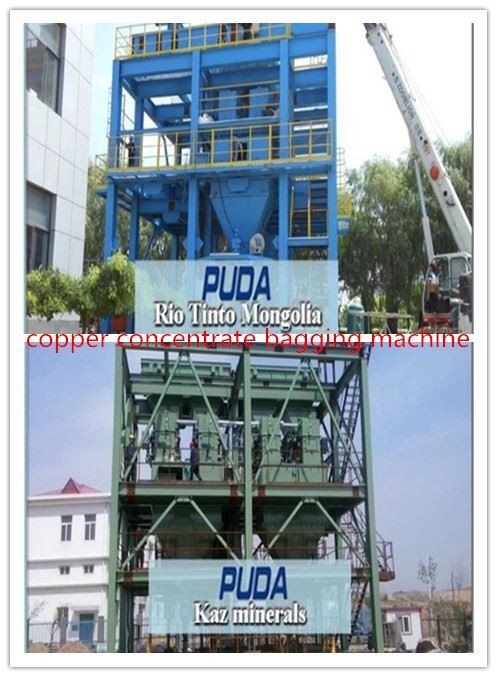

Mineral powder Ton Bag Packaging Machine

1.  Description of Ton Bag Packaging Machine:

Ton bag packing machine, also known as big bag packing machine and ton bag packing machine, is a special bulk material packing equipment with unique structure and large packing capacity, which integrates weight display, packing time sequence, process interlocking and fault alarm into one.

It has the characteristics of high measuring accuracy, large packing capacity, environmental protection sealant, high degree of automation, large production capacity, wide application range, simple operation, easy loading and unloading, etc.

Automatic peeling, automatic zero calibration, high sensitivity, online networking to achieve network management and other functions.

When filling, only manual bag hanging, bag filling, given a signal, the equipment can automatically complete the bag clamping, filling, measuring, after reaching the weight of the automatic sealing, loose the bag of the whole working cycle.

The equipment is designed for cement, non-metallic mineral powder, chemical raw materials and other powder and granular materials, widely used in building materials, chemical industry, food, feed, mining and other industries.

2. Technical data：Mineral powder Ton Bag Packaging Machine

 Bag weight pass rate：

3. Main parts: Ton Bag Packaging Machine

• One set of 1 ton charter rack (2 pieces)

• One bulk platform

• One load-bearing plate

• One piece of bulk head

• One pallet (delivery vehicle)

• One piece of screw gate

• One set of ladder climbing guardrail

• One set of microcomputer electric control cabinet

• One air control box

4.Advantages of Big Bag Packaging Machine:

• Packing machine feeding, packaging adopts stepless speed regulation, stable equipment performance, high packaging precision, fast speed.


• Set metering, loose bag, dust removal, control chain, fault alarm in one.


• The platform scale type metering, adopts the comprehensive board digital adjustment and parameter setting, with the weight  accumulative display and automatic peeling, automatic zero calibration, automatic drop correction and other functions, high  sensitivity, strong anti-interference ability.


5. Function introduction of each component:

Cache bin: it is used to cache materials and relieve the impact of materials. It is equipped with vibrator and breathing valve to relieve the pressure

Spiral feeder: 304 stainless steel material, through the control system automatically adjust the feeding speed, can cooperate with the weighing sensor to achieve the required accuracy.

Pneumatic bag gripper: Pneumatic bag gripper, good airtight, no powder leakage, protect the working environment.

6. Troubleshooting of Big Bag Packaging Machine:

Step 1: Air first.

Check: initial state (the four lifting angles are in closed mode, and the clamping bag is in loose bag mode.

If not, please check the solenoid valve and air path.

Step 2: Power up.

Check: initial state (the four lifting angles are in closed mode, and the clamping bag is in loose bag mode.

If not, please check whether the knob of the bag is in the closed position and whether the meter is in the stopped state.

Step 3: Manually press the start button (start) to start the whole process.

Note: You need to press the start button for the first filling cycle, and you don't need to press the start button for the other filling cycles.

Step 4: Manually operate the 1#/2# Bag Truck.

According to the large truck back button (1 # / 2 # bag carrier a back button), cars (1 # / 2 # bag carrier) retreat, bag carrier in tons of chartered right, back to limit stop automatically or manually by the car stop button (1 # / 2 # bag carrier a stop button), bag carrier (1 # / 2 # the car) stop, (installation limit, a total of four limit, 1 # / 2 # back limit, 1 # / 2 # forward limit).

Step 5: Start manually operating the lifting bag (the four lifting angles are in closed mode), and the lifting bag is completed.

Step 6: Manual wrapping bag.

Manually press the pouch button (pouch).

Complete bag clamping action (bag clamping relay indicator light on/bag clamping solenoid valve action).

Lifting frame rise (lifting frame relay light on/lifting frame solenoid valve action).

The fan runs for 9.9 seconds.

The fan solenoid butterfly valve opens the blowing for 9.9 seconds (the fan runs/the fan butterfly valve relay light is on).

Step 7: Filling.

(1) After the blowing stops (if the packaging bag is not correct, you can manually adjust the four Angle time of 9.9 seconds), the controller automatically clears the zero (to tare weight), and the automatic feeding begins.

(2) start fast feeding: the feeding valve is opened, the screw feeder runs, the dust collecting butterfly valve is opened, the frequency conversion feeding motor is low speed (K2 relay light).

High speed of variable frequency feeding motor (K1 relay light on).

(3) Reach the set coarse flow value, start slow feeding: feed valve open, screw feeder machine operation, dust collecting butterfly valve open, frequency conversion feeding motor low speed (K2 relay light on), (K1 relay light off).

(4) reach the set value, stop feeding: feeding valve closed, frequency conversion feeding motor stop, screw machine stop, dust butterfly valve closed (K1 relay light off, K2 relay light off).

After filling: the lifting frame descends (the relay light of the lifting frame is off/the solenoid valve of the lifting frame is off), and the lifting frame descends to the initial position.

The bag is reset (the bag relay is off/the bag solenoid valve is off/the bag is in loose bag mode), and the default reset waiting time is 3s.

Step 8: Manually rotate the knob of the bag to the open position (open), and the four lifting angles are in the open mode

Step 9: bag carrier transport and manually by parcel carrier forward button (1 # / 2 # bag carrier a forward button), bag carrier (1 # / 2 # the car), the 1 # / 2 # forward limit stop automatically or manually according to the large truck stop button, the small car (1 # / 2 # bag carrier) stop, (site erection limit, a total of four limit, 1 # / 2 # back limit, 1 # / 2 # forward limit).

Turn the knob of the bag to the closed position (off) and the four lifting angles are in the closed mode

Step 10: Start lifting the packing car.

Note: the whole filling process, needs the manual operation only hang bag, press the "start" button (every time on the first filling cycle need to press the "start" button, the rest of the filling cycle does not need to press the "start" button), press the "bag" button, when unloading bags transformation "punching bag" switch, the rest of the metrological control and so on are all automatic.

7. Equipment maintenance and debugging of Big Bag Packaging Machine:

According to the accumulation of practical experience and continuous summary, Puda Company has given the following debugging methods of several equipment

1. Parameter setting.

Usually ton bag packing machine needs to set more parameters, we can according to the normal parameter setting method.

2. Material debugging method.

Before carrying out the material debugging method, we must first determine whether the parts of the ton bag packing machine are in normal condition. When we ensure that there is no abnormal situation, we can carry out the feeding work.
