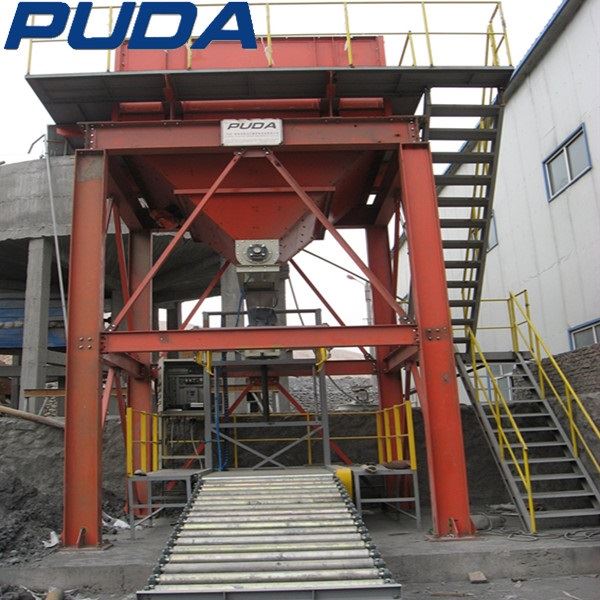

Copper Concentrate Bagging Machine

Copper Concentrate Bagging Machine Made in China

By 31 years of valuable experience in the field of automatic weighing packaging machinery, and according to the characteristics of tonnage packaging, PUDA company absorbs the European and American advanced design concepts, and through independent innovation and improvement means to improve the design level of weighing equipment; At the same time, the main control components of the weighing equipment (such as weighing instrument, weighing sensor low-voltage electrical appliance, programmable controller, pneumatic, etc.) are all made of foreign famous brand products, which ensures that the weighing equipment produced by PUDA has advanced technology, stable packaging speed, high measurement accuracy and good long-term stability, and meets the high standard requirements of customers at home and abroad. Is the highest degree of automation in China, and can achieve weighing platform and conveyor platform in the same plane.

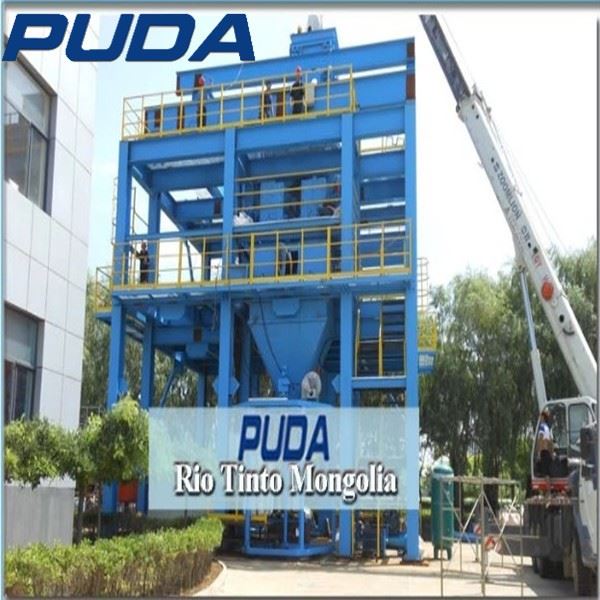

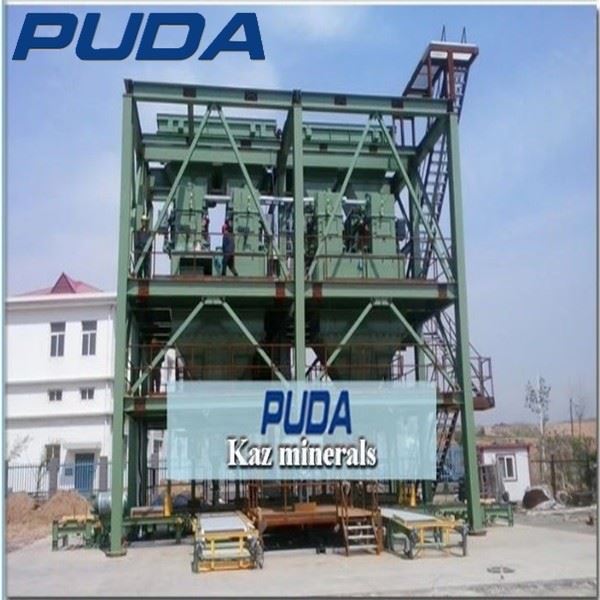

For more examples, please refer to customer case in the homepage.

https://www.puda-en.com/customer-cases

the video:

PUDA Advantages for solving packing difficulties of copper concentrate powder

• Side wall angle of silo is more than 60 degrees to change contacting angle between silo and materials so as to avoid self bridge

• Wear-resisting and anticorrosion lining board of flow aid to prevent material adhesive to silo wall and avoid corrosion of materials to silo wall.

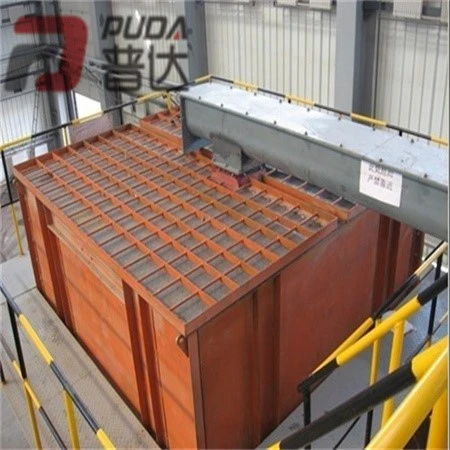

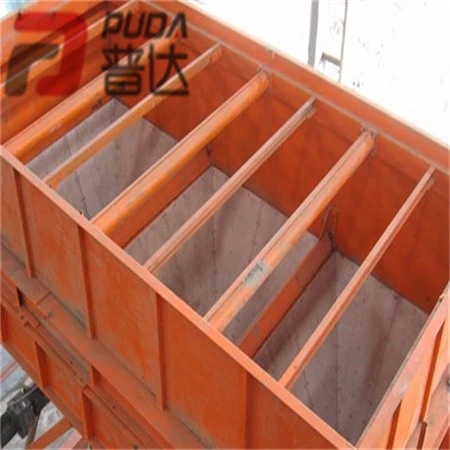

• Character pattern frame on the top of silo to prevent foreign matter.

• Agitating unit located on the center of silo to break material arch.

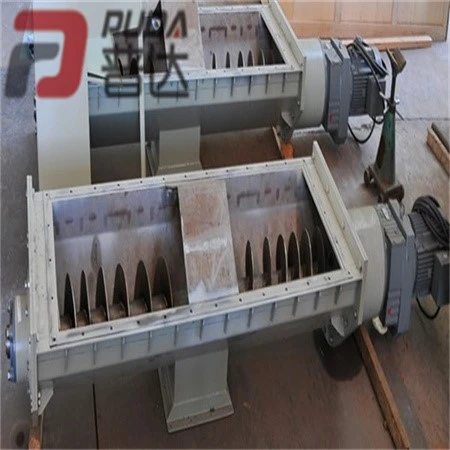

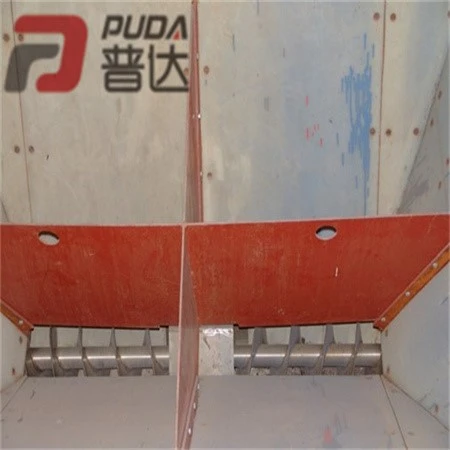

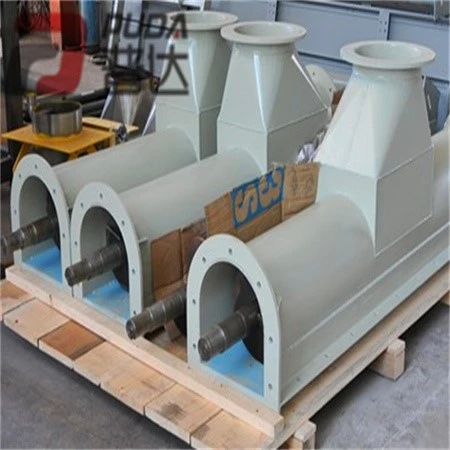

• U shape trough design of screw adopts wide angle to enlarge discharging angle of silo to prevent material arch.

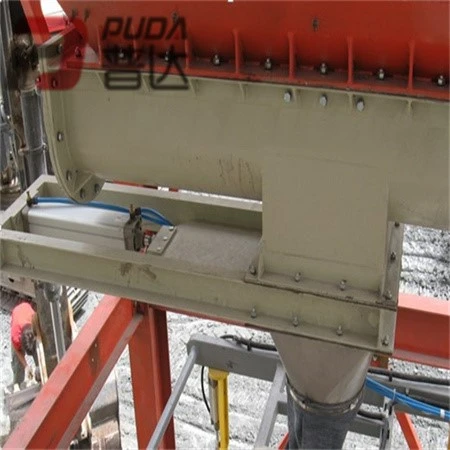

• Middle discharging method for silo outlet, contrary direction of screw blades, screw simultaneously feeds materials into outlet which fasts packing speed during packing.

• Slide valve on silo outlet can prevent materials topple down during not-packing time.

• Ringlike exhaust opening design for outlet can avoid dust.

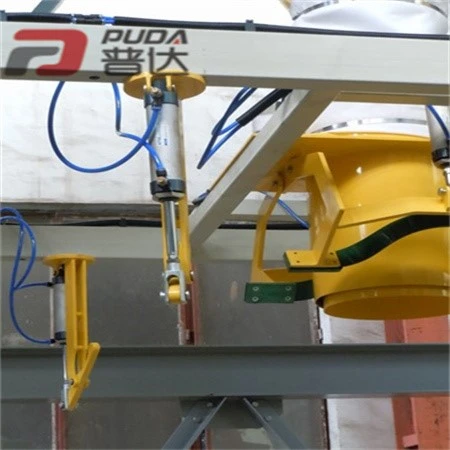

• Reliable hanging unit, bag is automatic discharged by cylinder after finishing packing without any help from manual work.

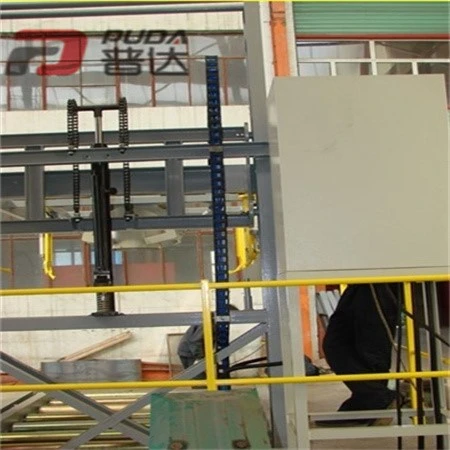

• Hanging holder for big bag adopts hydromantic up and down method, which can randomly change hanging height to alter different weighing range.

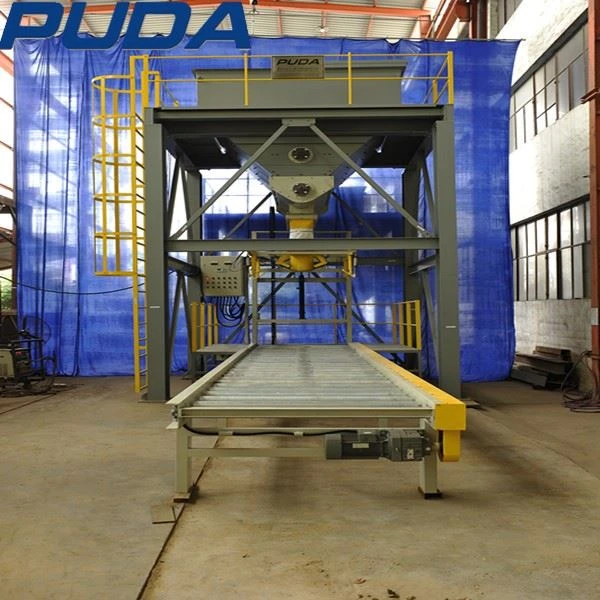

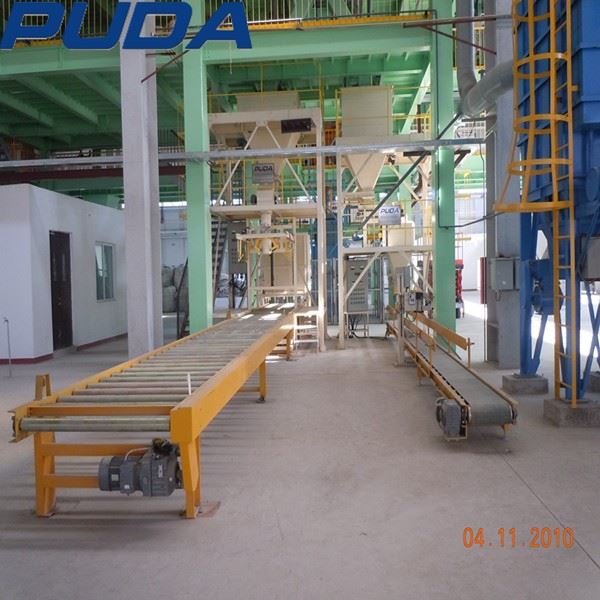

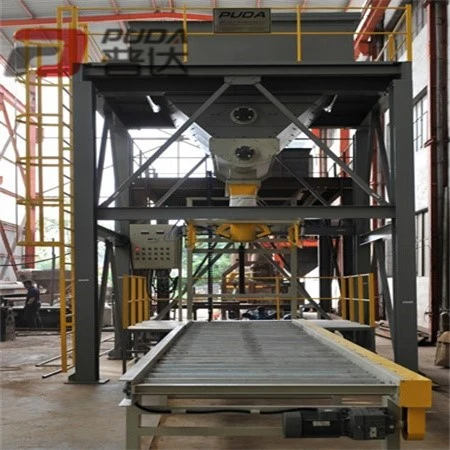

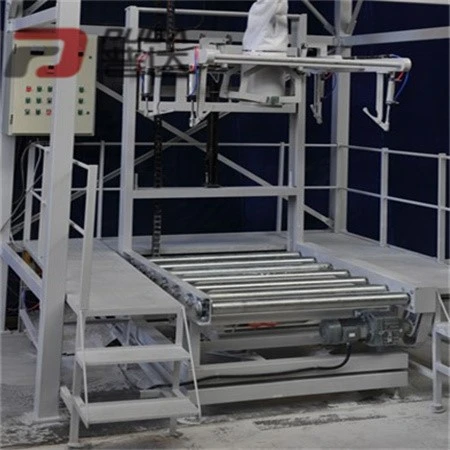

• Up and down weighing platform runs in the same plane with conveying platform, bag is automatic conveyed through dynamic roller after packing. Weighing holder and conveying roller has very good connection.

• Flexible vibrating unit on the bottom of weighing platform can efficiently reduce packing volume of materials and extend working life of load cell

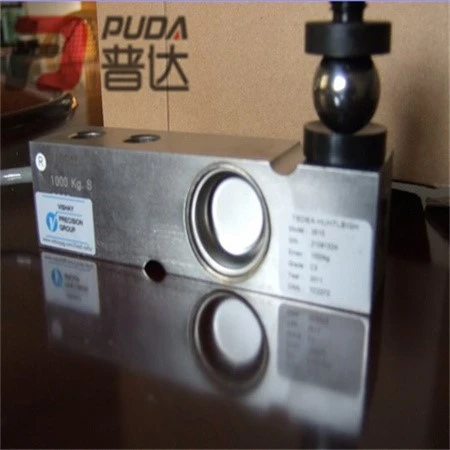

• Self-restoring design of weighing load cell holder that improves the bias load resisting ability of scale.

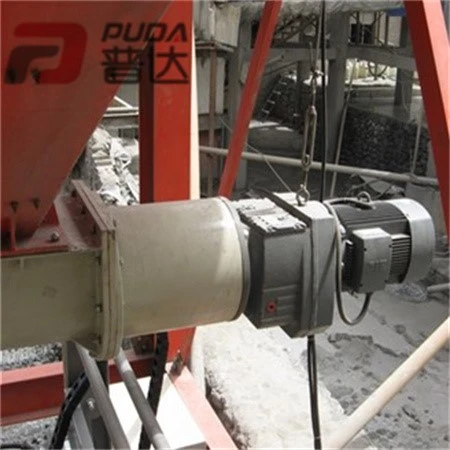

• Gear reducer is the drive unit for screw drive and roller drive , featuring eradicating oil leakage, stronger shock resistance ability, and longer working life compared to general one. Very low maintenance, even free maintenance in practical use process.

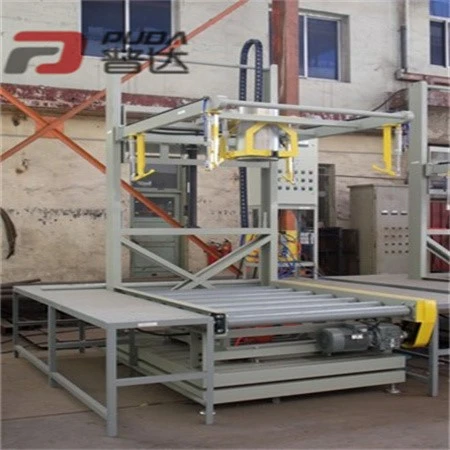

• Automatic pallet applying unit reduces labor intensity and improves working efficiency.

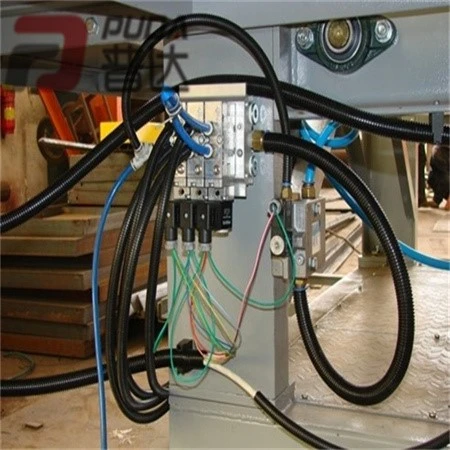

• Pneumatic solenoid valve adopts FESTO slide valve, which also be available under bad working environment.

• Weighing instruments equip with RS232 interface or RS485 interface that can connect with computer internet to deal with various data. It features with keyboard tare weight function, automatic barking, dynamic check, auto zero track, and accounting bags. It can record finished packing quantity for each day or each shift. It also has strong ant-jamming capability.
