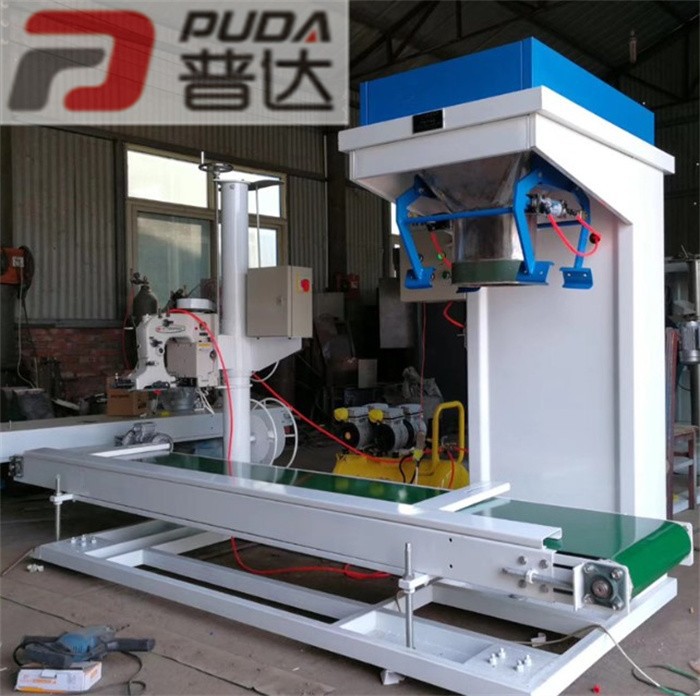

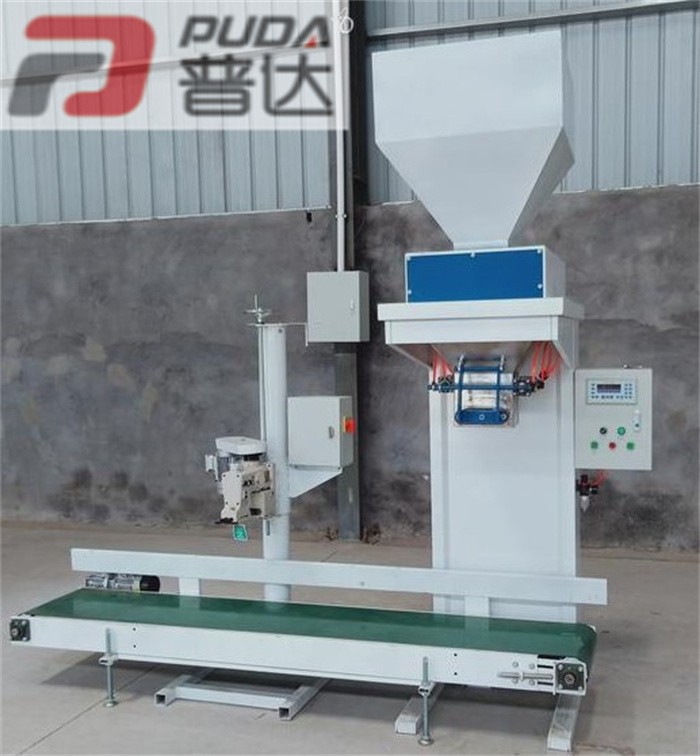

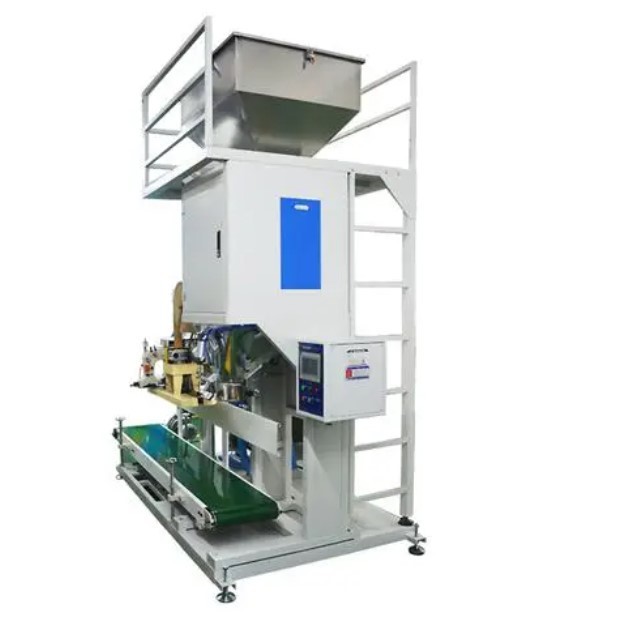

15kg Automatic Packing Machine For Animal Feed Pellets

  15kg Automatic Packing Machine for Animal Feed Pellets

The application:

It is widely used in the automatic packaging of cylindrical bags with various kinds of granular and powder-like materials with good fluidity of 5-50 kg, and can complete the procedures of bag making, metering, filling, sealing and so on.

(poor fluidity, large moisture, powder, flake, block and other irregular materials) briquettes, organic fertilizers, feed industry concentrate, mix, premix, fish meal, extruded material, secondary powder, alkali tablets and so on.

Techinical data of 15kg Automatic Packing Machine for Animal Feed Pellets:

Discharge port diameter: φ51 /Φ57/Φ80
Optional error: ≤ 200g
Packing speed: 6-8 bags/min
Note: Different materials packaging speed has a difference in output: 8-10 tons/hour (20KG-50KG per pack)
Rated voltage :220V
Rated power: 200W
Compressed air: 0.5-0.75Mpa 60m3/h
Dust removal air volume: 1000m3/h
Wind pressure: 0.01~0.03bar adjustable

Product introduction and features:
1. The machine needs manual assistance in bag loading, automatic weighing, bag clamping, filling, automatic conveying and sewing.
2. The belt feeding method is adopted, and the size gate is controlled by the air to achieve the required flow rate.
3. Solve some special chemical raw material packaging problems, wide range of application, simple operation.
4. Adopt high progress sensor, high intelligent weighing controller, high measurement accuracy, stable performance.
5. The whole machine is made of stainless steel (except electrical components and pneumatic components), with high corrosion resistance. rust
6. Electrical and pneumatic components are imported components, long service life, high stability.
7. The belt feeder adopts anti-corrosion belt.
8. Automatic sewing bag breaking function: photoelectric induction after automatic sewing bag pneumatic cutting line, saving labor.
9. Conveyor adjustable lifting: According to different weight, bag height is different, conveyor height is adjustable.
