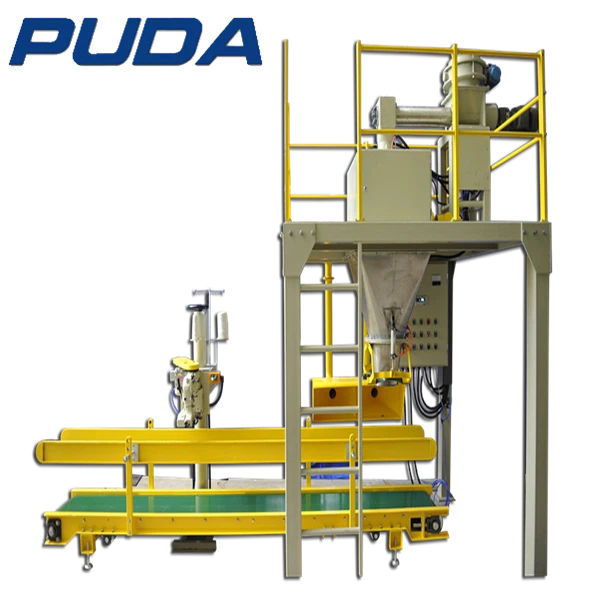

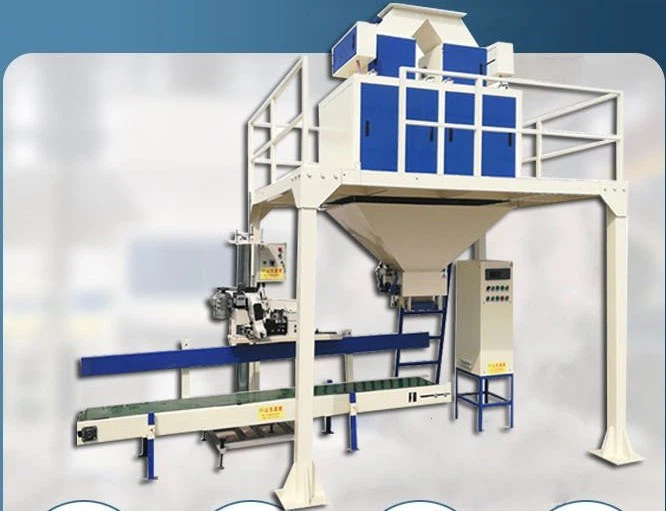

25kg 50kg Rubber Powder Packaging Machine

  25kg 50kg Rubber Powder Packaging Machine

Main technical parameters:
Power Supply: 380V 50/60Hz 15KW
Application: refractory materials, building materials, feed, flour, grain, plastic particles, seeds and other materials that need to be bagging Suitable bag: L500-1200~W300600mm
Applicable tray: L800-1200~W800-1700mm
Packing speed: 500-600 bags/hour
Palletizing height: ≤1.7 m
Use air source: 0.4 mpa

Technical features:
1. Stainless steel, touch screen PLC display (or MCU)
2. Photoelectric control technology of screw cutting
3. Electronic weighing feedback error, density adaptive
4. Weight error alarm, the system automatically corrects
5. Automatically set the parameter power-off protection.


Components: finishing screw, anti-bridge device, rotary disc valve device, frequency conversion control system, weighing control system, PLC control system, etc. Working principle: The use of weighing system, PLC control frequency screw fast, medium and slow feeding. Product highlights: variable speed screw is divided into full screw type and half screw type, full screw type can directly send the material into the packaging bag, mainly for the larger than the material flow and poor, the material is more viscous material design. The semi-screw type uses high-speed frequency conversion screw plus auxiliary air to indirectly send the material into the bag, mainly for 325-2500 mesh good flow, not easy to block the material design. Product features: frequency conversion speed regulation function, electronic automatic measurement technology, controlled by PLC program, can completely solve the ultrafine powder filling, with accurate measurement, no dust and other characteristics. System integration: PLC program control, automatic turntable valve, Chinese touch interface, weighing module measurement. Target users: full screw type such as: titanium dioxide, wet zirconium silicate, mica powder, precipitated barium, small particle powder, dry powder mortar, sealant, etc. Semi-screw type such as: heavy calcium acid, heavy barium sulfate, quartz powder, starch, zinc calcium magnesium stearate, stabilizer, wax powder, color powder, magnesium and aluminum hydroxide.
