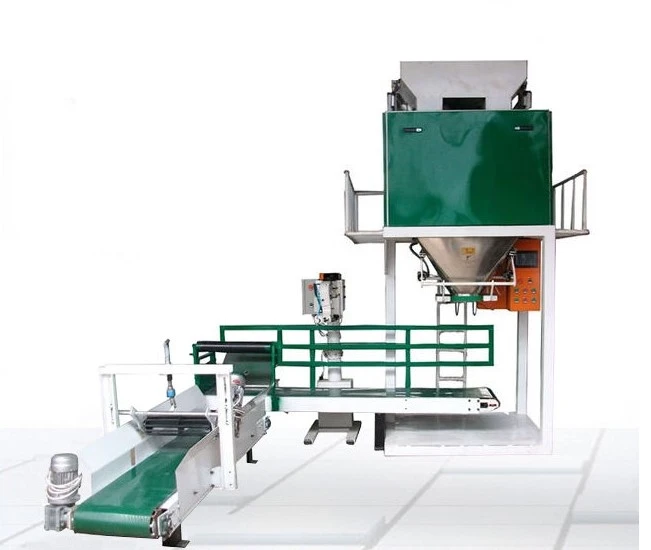

25kg Lithopone Packaging Machine

China's best price of 25kg Lithopone Packaging Machine

Lide powder packing machine:

The semi-automatic packaging machine is designed according to the national GMP standard, which can complete the procedures of measuring, bag clamping, filling, sealing, sewing, conveying, etc. It is suitable for packaging powder and granular materials in food, medicine, building materials, plastics, chemical and other industries. Such as milk powder, rice flour, cereal, sugar, coffee, monosodium glutamate, solid drinks, glucose, solid medicine, pesticides, powdered additives, dyes and so on. The main body of the machine is made of 304 stainless steel, motor, cylinder, electrical parts, pneumatic components, pneumatic sealing machine, sewing machine, etc. are selected from well-known brands, or can be designated by customers.

There are two quantitative methods: net weight and gross weight. The device is controlled by the gravity feeding mechanism to achieve quantitative, the input of the frequency converter is controlled by the weight signal of the weighing sensor, feeding can be divided into two or three sections to control; High precision.

Independent hanging sensor, stable signal transmission, to ensure the weighing accuracy; The host adopts frequency conversion technology; Host, transmission belt, bale sewing machine, controller network, ensure humanized operation, reduce labor intensity.

Technical data of Lide powder packing machine

Weighing range: 5-50 (Kg)

Fine degrees: plus or minus 0.2%

Power source: 380/220, 50 (V/ HZ)

Air source: 0.4 -- 0.6 (MPa)

Speed: 3-10 packages/min (granular material); 2-4 packages/min (powder material)

PUDA advantages of Lide powder packing machine:

Adopt carbon steel, stainless steel production process, double helix blanking.

2 Independent hanging sensor, stable signal transmission, to ensure the accuracy of weighing.

3 The main machine adopts frequency conversion technology, double motor fast medium slow three speed feeding, to achieve higher precision.

4 main machine, conveyor belt, bale sewing machine, controller network, ensure humanized operation, reduce the labor intensity of workers.

5. Solve the phenomenon of powder overflowing and bag overturning when pneumatic card opens the bag of similar products.

6.Proximity switch sensing, servo feeding, energy saving.

7. Shift production, daily production, cumulative output information automatic storage.
