25kg 50kg Carbon Granule Weighing Packing Machine

25kg 50kg Carbon Granule Weighing Packing Machine

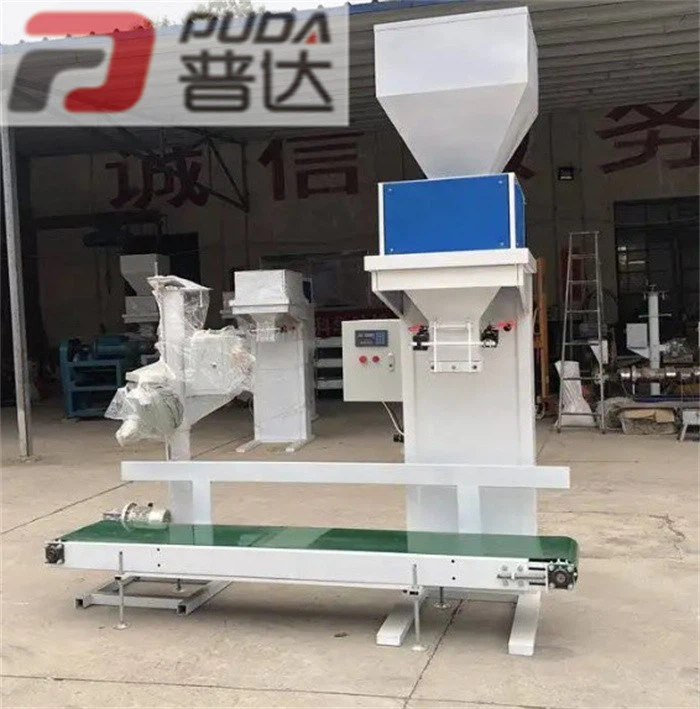

Introduction of 25kg 50kg Carbon Granule Weighing Packing Machine:

The granule without hopper packaging machine adopts advanced weighing sensors, packaging scale-specific weighing control terminal, programmable controller technology to achieve all the actions in the automatic quantitative packaging process of materials. It features high precision, high speed, strong environmental adaptability, and good system reliability.



Application of 25kg 50kg Carbon Granule Weighing Packing Machine:

Particle packing machine is suitable for rubber particles, plastic particles, fertilizer particles, feed particles, chemical particles, grain particles, building materials, metal particles sealing particle material quantitative packaging, fast speed, high precision, using advanced digital motor feeding way.



Main advantages for 25kg 50kg Carbon Granule Weighing Packing Machine:

1. High precision, fast speed, long life, good stability, manual bagging, automatic measurement.
2. It is not limited by the packaging container, and is suitable for the occasions when the material varieties and packaging specifications are often changed.
3. Large feed for flow feed, small feed for vibration feed, electronic balance weighing, overcome due to the change of material specific gravity caused by the shortcomings of measurement error.
4. The digital display is simple and intuitive, the packing specification is adjustable continuously, the working state can be changed arbitrarily, the operation is very simple.
5. For materials that are easy to produce dust, our company's unique design of dust removal interface or dust suction device can be installed at the mouth of the bag.



Technical parameters for 25kg 50kg Carbon Granule Weighing Packing Machine:
Counting mode: weighing type (industrial electronic scale)
Feeding mode: artesian flow + vibration, secondary feeding
Weighing range: 5 ~ 25 kg (continuous adjustable)
Package Size: 5~ 25kg (resolution 2 g)
Single bag error: < + 15g
Packing speed: 10~7 bags/min
Power supply: 220V /50Hz
Machine power: 350W
Air pressure :0.6MPa
Air consumption :0.02m2/min
Material: The contact part with the material is stainless steel # 304
Total weight: 750kg
Machine volume :2050×1950×3100 (mm)



PUDA Advantages for 25kg 50kg Carbon Granule Weighing Packing Machine:

1. This machine uses computer measurement devices, has accurate weighing, stable performance, and simple operation.
2. The machine is fully sealed and equipped with dust-proof openings. It has a reasonable structure and is durable, truly achieving environmentally friendly production. It is small in size, light in weight, and easy to adjust and repair.
3. Integrated mechanical and electrical, energy-saving. This machine can automatically achieve functions such as pressing, releasing of packaging bags, closing of gates, and lifting of bags.
