10kg 20kg 25kg Potato Starch Packaging Machine

China good supplier of 10kg 20kg 25kg Potato Starch Packaging Machine

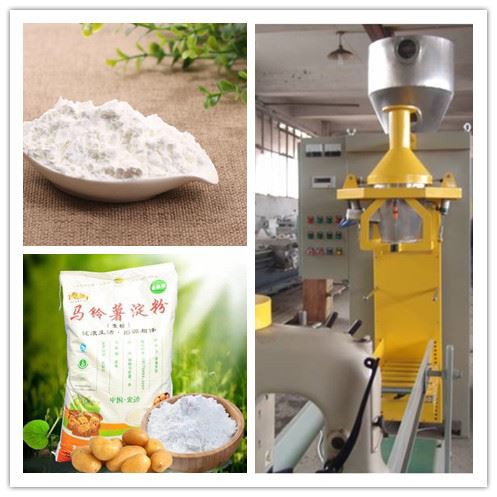

DCS-CJL Series: Screw Feeding Packing Machine for Open Mouth Bag

1. Applicable Range: 10kg 20kg 25kg Potato Starch Packaging Machine

The packaging machine is designed according to the national GMP standard, and is mainly designed for the super-fine powder which is easy to dust and the high-precision packaging requirements. According to the signal given by the weight sensor under the container, the machine completes the double-speed filling, metering and packaging, etc., and is suitable for packaging powder additives, toner, and other super-fine powder, etc.

The main body of the machine is made of 304 stainless steel, the motor, cylinder, electrical accessories, pneumatic components and other well-known brands are selected.

2. Technical Rarameters：10kg 20kg 25kg Potato Starch Packaging Machine

Model: DCS-CJL

1) Metering method: weighing screw filling

2) Package weight: 5-25kg

3). Packaging accuracy: S ±0.1%-±0.3%

4)· Packaging speed: 2-3BAq /min (depending on materials on site)

5). Power supply: three-phase 380V 50Hz

6) Machine power: 4.15KW

7) Machine weight: 380Kg

8）Air source pressure (Mpa): 0.4-0.6

9）Air Source Requirement: 0.4-0.8MPa Dry Compressed Air、Total Air Consumption: 0.3m3/min

10）Applicable Environment: Altitude≤2000meters, Humidity≤95% RH Non-congealable Dew, Operating Temperature:0℃～50℃, Storage Temperature : -20℃～70℃

3. Working Principle: 10kg 20kg 25kg Potato Starch Packaging Machine

Workflow: artificial sack or put pot - container rise - rapid filling, at the same time, the container down to weight to advance a slow filling a weight value to achieve the target - to stop a artificial remove the container. Selection of pneumatic device clamp bags and cans, just choose a different device, can meet the requirements of canned and packaged.

In addition, according to different material fineness, it can be equipped with pulse dust collector or nano air extraction rod for environmental protection.

4. Specification and Model: 10kg 20kg 25kg Potato Starch Packaging Machine

5. Packaging & Delivery of 10kg 20kg 25kg Potato Starch Packaging Machine

We use plastic film vacuum export wooden case, moistureproof and waterproof, can effectively solve the long sea voyage, the biggest protection of the product in the long time of sea from the outside environment influence, avoid the product to produce rust.

6.After-sale service of 10kg 20kg 25kg Potato Starch Packaging Machine

The machine before sent to you will installation and testing welled in our factory. When the machine arrived you, we can provide the following service to help you installation, debugging and operation the machine:

1.Field installation, commissioning and worker training

2.Video technical support

3. Online support

4. Free spare parts

5. Field maintenance and repair service

7.The product characteristics of 10kg 20kg 25kg Potato Starch Packaging Machine

1) A weight sensor is installed under the container tray to carry out fast and curtain filling according to the pre-set weight to ensure high packing accuracy.

2) The servo motor drives the tray to rise and fall, and the rise and fall speed can be set arbitrarily, so there is basically no dust lifting out to pollute the environment during filling.

3) Servo motor and servo drive control screw, stable performance and high precision.

4) PLC control, touch screen man-machine interface display, easy to operate.

5) All stainless steel structure; Combined material box is very convenient for cleaning.

6) The filling head is equipped with an adjustable height device, which can easily achieve multiple specifications of packaging.

7) Fixed screw installation structure, filling will not affect the material properties.

8. FAQ: 10kg 20kg 25kg Potato Starch Packaging Machine

Q1: Are you a machinery manufacturer?

A: Yes, PUDA is a 28-year’s leading, growth-focused manufacturer of packing equipment

Q2: How long is the guarantee?

A: All of our products are guaranteed for 12 months.

Q3: What is your Payment Terms?

A: T/T, and Western Union are all acceptable.

Q4: What is the delivery time?

A: PUDA common customized machine delivery time is 30-48 days.

Q5: Does your company supply the spare parts?

A: Yes, we supply the spare parts for you at the lowest price with the professional after-sale service team to promptly and thoroughly solve your problems.

9. Let's learn a little on potato starch

Potato Starch is accumulated from Potato Starch after being cleaned, filtered, deposited and dried. It can be used as thickener.

Potato starch is also commonly known as Potato starch. Don't confuse the two.

Although used for thickening less than too white flour, it retains moisture in some baked goods.

Potato powder is heavier than white powder.

The potato powder still has the taste of potato, while the white powder has no obvious taste.

Potato is a kind of grain, which has certain economic benefit and nutritional value.

It mainly grows in sandy soil belt around 40° N, with strong light intensity, large temperature difference between day and night, and cold climate.

Potato production in the world has more than 100 countries, mainly distributed in Asia, Africa, Europe and the Americas and other places, China, Russia, New Zealand and other countries are the main potato producers.

Potato starch plays an important role in human life and production, because it also plays an important role in other industries.

In modern industry, more and more in the process of the production and processing of potato starch instead of corn starch, wheat starch and cassava starch, one of the important raw materials, due to strong water imbibition and pasting, in large textile.ltd and paper mills in potato starch is added to the dyeing and printing slurry, cloth and paper can make the impregnation has the very good colour and lustre, quality better.

The addition of potato starch into rubber can not only play the role of filling, but also play the role of cross-linking, which can enhance the strength, hardness and wear resistance of rubber products.

Potato starch can be used in slimming products, health food, functional food and whitening products because of its low calorie, anti-oxidation and promoting metabolism.

In addition, the by-products of potato starch are waste water and residue of potato starch processing and separation.

The content of organic matter is very high, so some chemical components can be extracted and used in chemical production process.

Market prospect

Potato starch is widely used in textile, oil drilling, feed and food industries, especially the international and domestic market opening of food, the high precision of potato starch surge in demand, and potato starch have other irreplaceable natural attribute, makes it the preferred products, starch processing industry at home and abroad have a broad market, the market prospects look good.

Potato starch: it is the potato (including potato skin) cooked, dried and finely ground after getting, is commonly used in the family starch, its sticky foot, fine texture, white color, luster is better than mung bean starch.

Corn starch: Corn starch is extracted from corn, it is a kind of white microstrip light yellow powder, common products contain a small amount of fat and protein, etc., its moisture absorbability is strong, can reach more than 30%.
