25kg 50kg Stearate Packing Machine

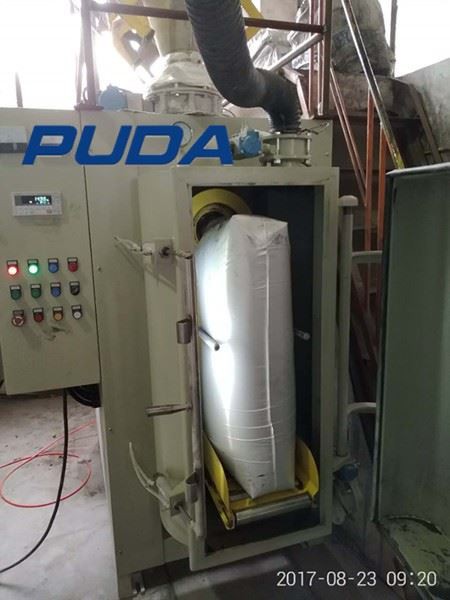

DCS-FZK Series: 25kg 50kg Stearate Packing Machine

Product Description:

This series of machines are designed for packing high air content, low bulk density and super fine to nanophase powdery materials into valve bags, the advantage is no dust leaking and protection of the environment. The packaging process can achieve high compression ratio when filling materials, the finished packaging bag has plump shape and smaller size, the packaging effect is particularly outstanding. Representative materials are Silica Powder, Carbon Black, White Carbon Black, Superconducting Carbon Black, Active Carbon in Powder, Stearate, Graphite, and etc.

Technical Parameters: 25kg 50kg Stearate Packing Machine

● Weighing Range: 10-50 kg

● Packing Rate: 1-4 bags/min (Packing speed depends on the material features and packing bags)

● Weighing Accuracy: ±0.2～0.4％

● Applicable Voltage: AC220V-440V 50/60HZ Three-Phase Four-Wire (Client shall provide local voltage class and frequency)

● Air Source Requirement: 0.4-0.8MPa Dry Compressed Air,Total Air Consumption: 0.4m³/min

● Applicable Environment: Altitude≤2000meters, Humidity≤95% RH Non-congealable Dew, Operating Temperature:0℃～50℃, Designed Storage Temperature : -20℃～70℃

Working Principle: 25kg 50kg Stearate Packing Sawing Machine

DCS-FZK series packing machine adopts negative vacuum inhaling materials. Materials are fed into buffer hopper from finished product hopper and inhaled into packing bag through discharging holes of bag in closed vacuum chamber working on by negative pressure as well as the air in materials are discharged. When filling weight reaches preset value, vacuum fan stops running and vacuum gate opens, packing bag will be manually taken off, thus single packing is finished.

Specification and Model：25kg 50kg Stearate Packing Machine

FAQ: 25kg 50kg Stearate Packing Machine

1. How long will your engineer reach our factory?

Within one week after machine arrival your factory.

2. How many days will you finish installing ?

We will finish installation and training within 15days.

3. What should we charge for your engineer?

You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 80USD one day per person.

4. How long is your machine's warranty period?

All our machines have one year guarantee, starting from finished installation.

5. How could we do after one year warranty period?

We also can do service for you, but you need pay salary for our technician 80USD/day.

6. How could we do if the parts broken within warranty?

 We would express the free replacement parts during the warranty date.

7. Does your engineer understand English?

 Our engineer understand a little English. All our engineers have more than 20 years machine installation experience. In addition, they can use body language to communicate with customer.

8. Can you help us find any engineer in our location?

 Of course, we will check and inform you as soon as possible.

9. How do we solve the machine problem after your engineer leaving?

 Generally speaking, there will be no problem after finish installing. In case you have any problem, you can contact with our sales at any time. Our engineer will take a solution video according your description.

10. How many worker do we need running those machines?

Usually two or three people is ok. If it is manual feeding, more people are needed, mainly according to your production capacity.

Packaging Details of 25kg 50kg Stearate Packing Sawing Machine

1) Lubricate Drive Parts
2) Divide Machine Into Modules
3) Wrap Modules With Plastic Film
4) Packing Modules into Plywood Cases
5)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.

After-sale Services: 25kg 50kg Stearate Packing Sawing Machine：
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. CORETAMP engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. PUDA has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.

With the development of the automation industry, more and more industries use belt packaging scales to improve production efficiency. But machines, like humans, have a useful life, and everyone who uses them wants to extend their use by as many years as possible, so what should be done? These points need to be done:

1. Try to avoid excessive use, it is important to do daily maintenance. The cleanliness inside the equipment can be separately controlled to keep it away from dust and improve the packaging quality of the product, which can also prevent aging. During the maintenance and testing of the heavy machine, please be sure to cut off the power supply of the machine and be operated by professionally trained maintenance personnel.

2. Eliminate hidden trouble and balance the wear degree of each component. It is necessary to carry out diagnostic testing and status inspection on the parts that affect the performance of the belt type quantitative packaging scale equipment and the parts with fault symptoms, and then complete the necessary replacement, adjustment and troubleshooting to prevent the occurrence of such problems. Regularly clean and inspect all components of the scale body to eliminate budding failures.

3. Operate according to the instructions, do safety training for the staff, avoid overload, so as not to damage the sensor. Make sure the equipment and control box are well electrically grounded. Ensure that incoming materials are even, stable and sufficient. Ensure that the platform or steel structure supporting the scale body is stable. Do not connect the scale body to the vibrating equipment.

By using the above method, the service life of the quantitative packaging scale can be greatly extended, and I hope that the content will be helpful to the users who have seen it. Especially now the weather is gradually getting hotter, with the arrival of summer, electricity consumption will continue to increase. When the machine is not usually used, pay attention to unplug the power, while saving electricity, it can also extend the service life of the machine and equipment, which is conducive to saving maintenance costs, why not?
