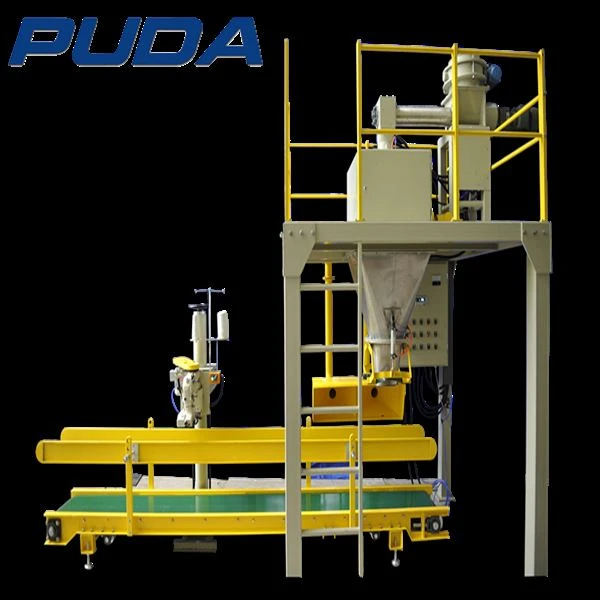

10kg 20kg 25kg Wheat Starch Packaging Machine

First-class supplier of 10kg 20kg 25kg wheat starch packaging machine

DCS-CJL Series: Screw Feeding Packing Machine for Open Mouth Bag

1. Applicable Range: 10kg 20kg 25kg wheat starch packaging machine

This machine can complete the measurement, filling and other work, suitable for the measurement of those easy to flow or poor fluidity of powder granular materials, such as: flour, starch, chemical powder and other powder materials automatic measurement packaging.

The machine USES screw metering machine to complete metering, filling, etc., suitable for measuring powder materials;

The servo drive system has the advantages of high precision and stable performance.

Stainless steel open-type material box is easy to clean;

Equipped with safety protection, in line with the requirements of enterprise safety management.

2. Technical Rarameters：10kg 20kg 25kg wheat starch packaging machine

Model: DCS-CJL

Weighing range: 10-50 kg/bag

Packing speed: 6-7 bags/min

Power (KW): 2.2

Voltage (V/Hz): Three-phase (3PH) AC380/50

Accuracy: OILMR61×(0.2) level

Air source pressure (Mpa): 0.4-0.6

Air Source Requirement: 0.4-0.8MPa Dry Compressed Air、Total Air Consumption: 0.3m3/min

Applicable Environment: Altitude≤2000meters, Humidity≤95% RH Non-congealable Dew, Operating Temperature:0℃～50℃, Storage Temperature : -20℃～70℃

3. Working Principle: 10kg 20kg 25kg wheat starch packaging machine

The automatic packaging machine is specially designed for the quantitative packaging of feed, fertilizer, chemical raw materials, building materials and other relatively fine powder with poor fluidness. It adopts long-distance wring dragon feeding. The material enters the buffer bin through pneumatic butterfly valve, and the material is delivered to the bag through spiral transmission.

The feeding quantity is controlled by controlling the speed of the belt. Once the bag is filled, the bag holder is opened by the control system, and the bag is sent away by the conveyor belt, which is sealed with manual AIDS.

In addition, according to different material fineness, it can be equipped with pulse dust collector or nano air extraction rod for environmental protection.

4. Specification and Model: 10kg 20kg 25kg wheat starch packaging machine

5. Packaging & Delivery of 10kg 20kg 25kg wheat starch packaging machine

PUDA has been exporting for 20 years and its equipment is sold all over the world. It is packed in large, non-fumigating wooden cases or iron cases, or vacuum moisture-proof wooden cases, suitable for long sea voyage.

6.After-sale service of 10kg 20kg 25kg wheat starch packaging machine

The machine before sent to you will installation and testing welled in our factory. When the machine arrived you, we can provide the following service to help you installation, debugging and operation the machine:

1. We have our own factory,can customize the product according to your needs.

2. If there are any malfunction for the machine. PUDA will try our best to solve the problem within 24 hours.

3. We have 10 years export experience,can supply the service of production,inspection of goods and transport .

4. warranty time is for one year,professional timely advice and spare parts will be offered all the time.

7.The product characteristics of 10kg 20kg 25kg wheat starch packaging machine

1. The automatic powder packaging machine is one of the quantitative packaging machines, which is suitable for other powders which are not easy to agglomerate, with less water content and fineness below 300 mesh.

2. Powder automatic packaging machine is specially developed by our company for packaging all kinds of powder. It can automatically complete the material packaging control function, and integrates weight display, packaging sequence, process linkage and fault alarm into one.

The feed can be controlled accurately by variable frequency feeding of twisted dragon.

The equipment material can be made into contact material stainless steel 304 or stainless steel 304, high corrosion resistance.

3. The powder automatic packaging machine is composed of feeding device, weighing sensor, bag clamping mechanism, steel structure bracket, conveying equipment, control cabinet (including control instrument), etc.

4. Manual bagging is adopted and controlled by intelligent electric control system. Fast, medium and slow feeding is adopted to ensure quantitative accuracy of the system, uniform feeding, and automatic completion of feeding, weighing, bagging and feeding processes.

5.The machine needs manual assistance for bagging, automatic weighing, bagging, filling, automatic conveying and sewing.

8. FAQ: 10kg 20kg 25kg wheat starch packaging machine

Q1: How to choose a suitable packaging machine?

A: PUDA owns various packing machines, suitable for a wide range of dry powder, granule and bulk goods. Please offer basic information of your products and requirements, we will select the appropriate items and make drawings for your confirmation. In addition, your custom design is also effective. We have a team of 20 engineers and R & D teams.

Q2: What are your delivery conditions?

A: EXW, FOB, CFR, CIF.

Q3: What is the delivery time?

A: It usually takes 30 to 40 days to receive your advance payment. The exact delivery time depends on the items and quantity you ordered.

Q4: Will you test all items before shipping?

A: Yes, we have conducted 100% testing before delivery.

9. Let's learn a little on wheat starch

Cheng Flour is also known as cheng Flour, ting flour, wheat starch.

It is a gluten free flour made from wheat.

Can be used to make a variety of dim sum such as shrimp dumplings, fruit powder, sausage powder, etc.

It is the processed flour. After rinsing with water, the gluten in the flour is separated from other substances. The gluten becomes gluten, and the rest is flour.

1. In addition to direct use, can also be processed into a variety of modified starch, hydrolysis products

2. Starchy foods such as vermicelli and vermicelli can be eaten directly;

Starch as raw material can be used in instant noodles, ham sausage, ice cream and other food and degradable plastic products.

As fermentation raw materials for starch sugar, amino acids, alcohol, antibiotics, monosodium glutamate and other products production.

Starch can also be processed into modified starch, widely used in papermaking, textile, food, casting, medicine, construction, oil drilling, mineral processing and other fields.
