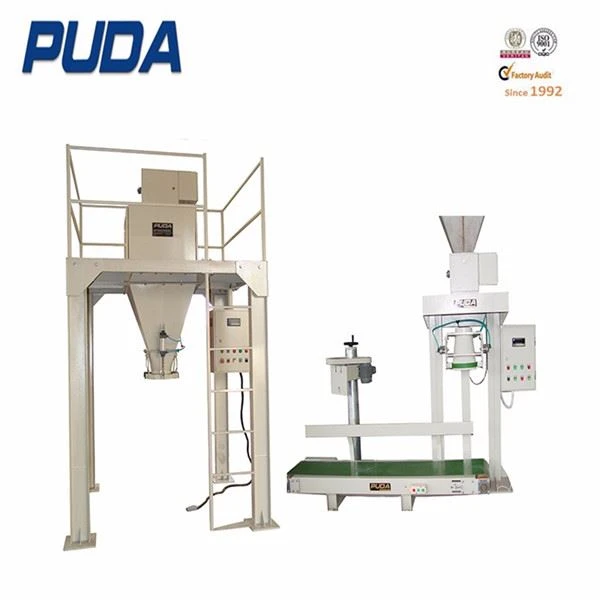

DCS-CZL Series: Free Flow Packing Machine Open Mouth Bag
1. Applicable Range:
This Machine for Packing Free Flowing Granular and Blocky Materials into Open Mouth Bags, Representative Materials are Rice, Seed, Urea, Compound Fertilizer, Granulated Sugar, Rubber Granule, Feed, Fertilizer, Granulated PVC, Active Carbon, Construction Materials, and Refractory Material etc.
2. Technical Parameters: Open Bag Gravity Bagging Machine
● Weighing Range: 10-50 kg
● Packing Rate: 4-20 bags/minute (packing speed depends on the material features and packing bags)
● Weighing Accuracy: ±0.2％
● Applicable Voltage: AC22OV-440V 50/60HZ Three Phases and Four Lines
(Clients should supply the voltage class and frequency at their local place)
● Air Source Requirement: 0.4-0.8MPa Dry Compressed Air,Total Air Consumption: 0.5m3/min
● Applicable Environment: Altitude≤2000meters, Humidity≤95% RH Non-congealable Dew, Operating Temperature: 0℃～50℃, Storage Temperature : -20℃～70℃
3. Working Principle:
Materials flow freely by gravity and product will enter into weighing system uniformly through feeding unit from silo. The feeding unit valve will open after start up packing machine, then Materials will be filled into bag or weighing hopper. When weight reaches the preset value, the feeding unit valve will close. Operator takes filled bag away, or put it on belt conveyor to sewing machine. The packing process is finished.
4. Specification and Model:
|
Model |
Weighing Range |
Filling Speed |
Accuracy |
Power |
Referenced Weight |
Referenced Size (m) |
|

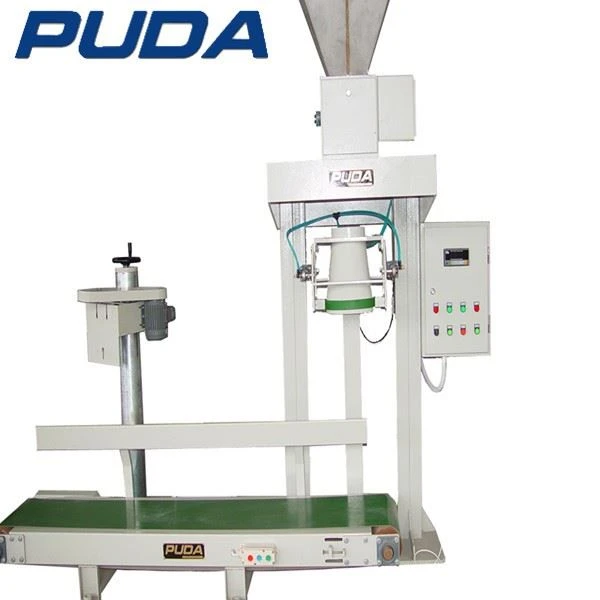

DCS-CWZL No Weighing Hopper |
10-50kg |
4-6 bags/minute |
±0.2% |
1 kw |
600 kg |
Recommend Mounting Height≥2.1 |
|

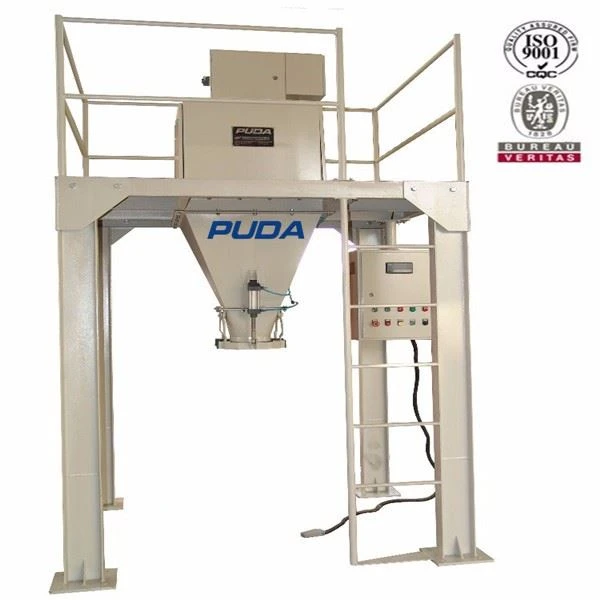

DCS-CDZL Single Weighing Hopper |
10-50kg |
4-8 bags/minute |
±0.2% |
1 kw |
750 kg |
Recommend Mounting Height≥3.1 |
|
DCS-CSZL Double Weighing Hoppers |
10-50kg |
8-20 bags/minute |
±0.2% |
1 kw |
950 kg |
Recommend Mounting Height≥3.9 |
5.Advantage of Open Bag Gravity Bagging Machine
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
6. After sales service of Open Bag Gravity Bagging Machine
- Training buyers how to install and run the machine
- Engineers are available to service overseas.
- One year warranty
- Lifetime technique service support
- Spare parts with lower price
7.Successful story
Puda is an experienced leader in ore concentrate packing industry, we own famous partners like Southern Copper Corp. Rio Tinto Group, Zijin Group, LG China, OT Group, FL Smith, MCC,KAZ Minerals PLC and E.Mix and ECUACORRIENTE S.A.
