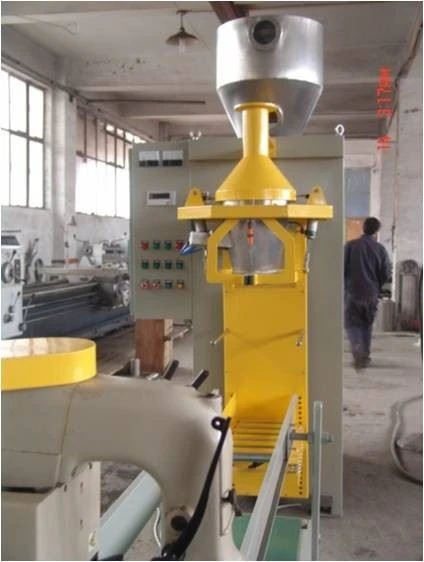

25KG 50KG Low Cement Refractory Castable Packaging Machine
China first-class factory of 25KG 50KG low cement refractory castable Packaging Machine：
Product Application of 25KG 50KG low cement refractory castable Packaging Machine：
PUDA DCS series packing machine can be used for Refractory Plant, Chemical Fertilizer Plant, flour Mill, Iron Plant, Steel Plant, dry Powder mortar Factory, cement Plant, bulk material Factory, Building material Factory, Premix Factory, etc.
Quantitative packing scale: suitable for bulk powdery material with no viscosity and poor fluidity, feeding mode is spiral, according to the structure design of domestic particle feeder, so as to ensure the speed.
Technical parameters of 25KG 50KG low cement refractory castable Packaging Machine：
Weighing range: 10-50kg
Packing speed: 2-8 bags/min (depending on the characteristics of the packing material and the different packing bags)
Measurement accuracy: ±0.2%
Power: Single phase AC220V, three phase 380V, 50Hz, or customize
Machine weight: 500-750kg
Machine size: 2800*800*2600mm
Working principle of PUDA 25KG 50KG low cement refractory castable Packaging Machine：
This machine is mainly composed of four parts: automatic weighing device, conveying device, sewing device and computer control.
It has the characteristics of reasonable structure, beautiful shape, stable operation, energy saving, convenient operation and accurate weighing, and can be changed to electric bag clamping device according to customers' needs.
The main machine adopts fast, medium and slow three speed feeding, PLC liquid crystal display, sampling processing technology, anti-interference technology, and realize automatic error compensation and correction.
Bag placing → Automatic filling → Automatic weighing → Automatic conveying → Automatic sealing (sewing,heating or weld) → next process.Features of PUDA 25KG 50KG 25KG 50KG low cement refractory castable Packaging Machine：
Stainless steel production process, double helix feeding.
Independent suspension sensor, stable signal transmission, ensure the weighing accuracy.
The main engine adopts frequency conversion technology, and double motors feed fast, medium and slow at three speeds to achieve higher accuracy.
Host machine, conveyor belt, sewing machine and controller are networked to ensure humanized operation and reduce labor intensity of workers.
Solve the phenomenon of powder spilling and bag turning when the pneumatic card opens the bag of similar products6. Infrared sensor, servo feeding, energy saving.
Shift production, daily production and accumulative output information are stored automatically.
PUDA Service: 25KG 50KG low cement refractory castable Packaging Machine：
Pre-sale Service.
PUDA Professional engineer support technical guide and make Special design options upon clients conditions on site.After-sale service.
PUDA offers 12 months warranty.
PUDA sells Spare parts in low cost.
Exclusive and unique solution by professional engineers.
Let's learn something about low cement refractory castable ：
Low cement castable refers to the castable with low cement content. Refractory cement castable cement dosage is generally 15% ~ 20%, low cement castable cement dosage is about 5%, some even reduced to 1% ~ 2%.
The purpose of reducing cement content is to improve the fire resistance of castable.
It relies on the addition of several special materials to obtain good properties: first, pure calcium aluminate cement, due to the high content of the effective mineral CaO·Al2O3, can be mixed with less to obtain the required strength.
The second silica fume is glass microbeads with an average particle size of 0.5 m and a SiO2 content of 93% ~ 98%.
After adding silica fume, the castable has good fluidity, low water requirement for forming and low sintering temperature, which improves the performance after heat treatment.
Third, alumina powder, it is easy to participate in the reaction, improve the fire resistance of the material.
Fourth, water reducer, it can be adsorbed on the surface of powder, and then generate electrostatic repulsion dispersed powder, so as to further play the role of micro powder.
