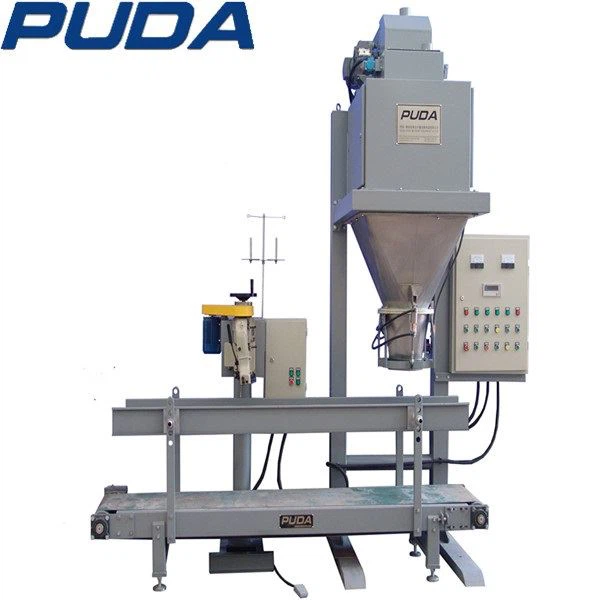

Open Bag Belt Bagging Machine

DCS-CPD Series: Belt Feeding Packing Machine for Open Mouth Bag

1. Applicable Range:

This Machine for Packing Irregular Granule, and Non-free Flowing Powdery and Granular Mixture into Open Mouth Bags, Representative Materials are Mental, Nonmetal, Industrial Chemical, Refractory Materials, and etc.

2. Technical Parameters：Open Bag Belt Bagging Machine

• Weighing Range: 10-50 kg
• Packing Rate: 2-15 bags/minute (packing speed depends on the material features and packing bags)
• Weighing Accuracy: ±0.2％
• Applicable Voltage: AC22OV-440V 50/60HZ Three Phases and Four Lines (Clients should supply the voltage class and frequency at their local place)
• Air Source Requirement: 0.4-0.8MPa Dry Compressed Air,Total Air Consumption: 0.8m3/min
• Applicable Environment: Altitude≤2000meters, Humidity≤95% RH Non-congealable Dew, Operating Temperature:0℃～50℃, Storage Temperature : -20℃～70℃

3. Working Principle: Open Bag Belt Bagging Machine

Material is fed by belt feeder, and material will enter into weighing system uniformly through belt feeder from silo, the feeding is controlled by controlling system. The belt feeder starts to run after start up packing machine, and then material will be filled into bag or weighing hopper. When weight reaches the preset value, the belt feeder will stop running. Operator takes filled bag away, or put it on belt conveyor to sewing machine. The packing process finishes.

4. Specification and Model: Belt Feeding Packing Machine for Open Mouth Bag

5. Quick Details: Belt Feeding Packing Machine for Open Mouth Bag

6. FAQ: Open Bag Belt Bagging Machine

Q1. Can your machine meet our needs well?

We will give you the proposal according to your specific requirement. Every machine is customized to meet your needs well.

Q2. Are you factory or trading company?

We are the factory, we doing this line for more than 28 years.

Q3. What's your payment way?

T/T by our bank account directly, or by Alibaba trade assurance service.

Q4. How can we make sure about the machine quality after we put the order?

Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in the third party inspection organization.

Q5. Why we should choose your company?

We are professional in packing machines over 28 years, and we provide better after-sales service. You guarantee no risk for our deal.

7.Packaging and Shipping Belt Feeding Packing Machine for Open Mouth Bag

Automatic Packing Machine is usually loaded in Standard Container with strengthen protection against collision in Nude Packs or in Bulk. The electrical motor and spare parts will be packed by wooden case or steel frame. we offer various ways of package or as the clients' request.

Machines will be covered with plastic films of the machine surface and then packing into export standard wooden cases.

8.PUDA SERVICE: Open Bag Belt Bagging Machine

• We have a professional team to provide you with 24-hour online service, And, our efficient after sales service is present worldwide.
• We have delivered and installed more than 3,000 machines worldwide. All of our quality machinery complies with the CE conformity, MID European Certification for weights and measurements.
• Permanent investment in research and development, We are specialists in bagging bulk solids in all sorts of bags: Valve bags, Open mouth bags, FFS bags and Big Bags.
