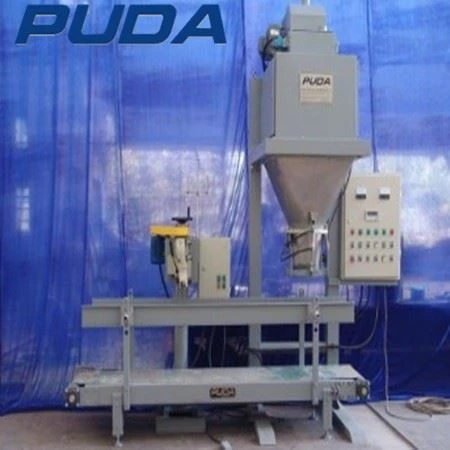

Open Bag Vibrating Bagging Machine
DCS-CZD Series: Vibrating Feeding Packing Machine for Open Mouth Bag
1. Applicable Range:
This Machine for Packing High Hardness, Irregular Granule, Powdery and Granular Mixture into Open Mouth Bags, Representative Materials are Mental, Nonmetal, Refractory Materials, Feed, and etc.
2. Technical Parameters：Open Bag Vibrating Bagging Machine
● Weighing Range: 10-50 kg
● Packing Rate: 3-15 bags/minute (packing speed depends on the material features and packing bags)
● Weighing Accuracy: ±0.2％
● Applicable Voltage: AC22OV-440V 50/60HZ Three Phases and Four Lines (Clients should supply the voltage class and frequency at their local place)
● Air Source Requirement: 0.4-0.8MPa Dry Compressed Air,Total Air Consumption: 0.4m3/min
● Applicable Environment: Altitude≤2000meters, Humidity≤80% RH Non-congealable Dew, Operating Temperature:0℃～50℃, Storage Temperature : -20℃～70℃
3. Working Principle: Open Bag Vibrating Bagging Machine
Material is fed by vibrating feeder, and product will enter into weighing system uniformly through belt feeder from silo, the feeding is controlled by controlling system. The vibrating feeder starts to run after start up packing machine, and then product will be filled into bag or weighing hopper. When weight reaches the presetting value, the vibrating feeder will stop running. Operator takes filled bag away, or put it on belt conveyor to sewing machine. The packing process finishes.
4. Specification and Model: Open Bag Vibrating Bagging Machine
|
Model |
Weighing Range |
Filling Speed |
Accuracy |
Power |
Referenced Size (m) |
Representative Material |
|
DCS-CWZD No Weighing Hopper |
10-50kg |
3-5 bags/minute |
±0.2% |
1.5kw |
Recommend Mounting Height≥2.3 |
Mixture of Power and Granular with Bad Fluidity. |
|
DCS-CDZD Single Weighing Hopper |
10-50kg |
3-6 bags/minute |
±0.2% |
1.5kw |
Recommend Mounting Height≥3.1 |
Mixture of Power and Granular with Bad Fluidity. |
|
DCS-CSZD Double Weighing Hopper |
10-50kg |
6-15 bags/minute |
±0.2% |
3kw |
Recommend Mounting Height≥3.8 |
Mixture of Power and Granular with Bad Fluidity. |
5 Main parts of Open Bag Vibrating Bagging Machine
|
Name |
Function |
|
Discharge mouth and bag clamping device |
Using 304 stainless steel, parts are not easy to corrosion, more durable. FESTO Cylinder,Germany famous engines, strong driving force, low fuel consumption, high economic,longer service life. |
|
Electrical components |
Internationally renowned brands of electrical components and machine parts, such as Germany Siemens PLC ,Japan Unipulse Mating instrument, France Schneider Mating low voltage apparatus to ensure the smooth operation of packaging operations, easy to use,longer service life. |
|
Weighing bucket |
Using internationally renowned brand load cell, high accuracy, good quality. All stainless steel, corrosion-resistant, long service life. |
6.Standard Features of Open Bag Vibrating Bagging Machine
- Weighing, filling, packing, sawing or heat sealing in one operation.
- English and Chinese screen display, operation is simple.
- PLC computer system, function is more stable, adjustment any parameters not need stop machine.
- Double sever motors drawing film position accurately and the speed more fast.
- Temperature independent control system precision get to ± 1°C.
- Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
- Packing type diversification, pillow sealing, standing type, punching etc.
- Working quietly, low noise.
7.PUDA Service for Open Bag Vibrating Bagging Machine
- Manual / Videos of machine installation, adjusting, setting, maintenance are available for you.
- If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
- PUDA engineers & technician are available send to your countries for services if you agree pay the expenditure.
- The machine will have 1 year warranty of machine. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you.
