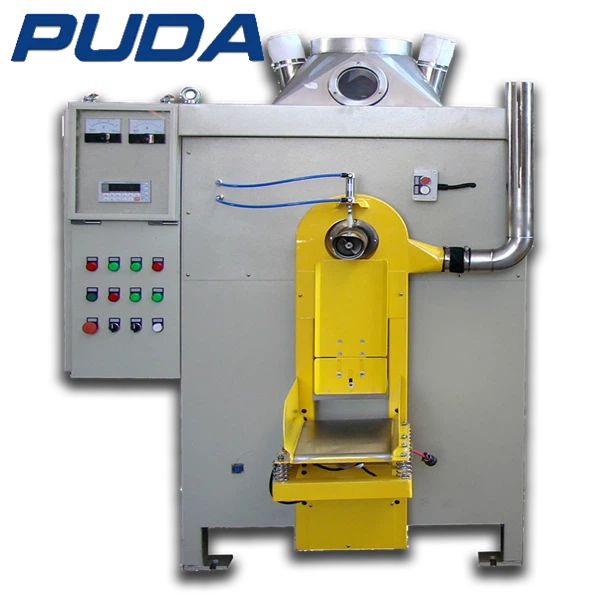

25kg Screw Type Valve Bag Packaging Machine

25kg Screw type Valve Bag Packaging Machine

Product Overview:
The screw feeding valve bag packaging machine is suitable for packaging valve bags of powdery and sliced materials. Its advantages include low dust and high precision. Representative materials include flour, titanium dioxide, alumina, kaolin, calcium carbonate, bentonite, dry-mixed mortar, etc.

Technical parameters:
Weighing range: 10 - 50 kg
Packaging speed: 1 - 4 bags per minute (depending on the characteristics of the packaging material and the type of packaging bag)
Measurement accuracy: ±0.1 - 0.4%
Applicable voltage: AC 220V - 440V 50/60Hz three-phase four-wire (customers need to provide the local voltage level and frequency)
Air source requirements: Pressure of 0.4 - 0.8 MPa, dry compressed air, total gas consumption 0.2 m3/min
Applicable environment: Altitude ≤ 2000 meters, usage environment humidity ≤ 95% (no condensation), usage temperature 0℃ - 50℃, designed storage temperature -20℃ - 70℃

Working Principle:
The DCS series packaging machine: The materials enter the buffer compartment of the packaging machine from the finished product storage area. The homogenization and stirring system homogenizes the materials, effectively removing the gases contained in the materials from the buffer compartment. It also has the function of preventing the materials from caking or bridging, ensuring the smoothness of the entire packaging process. During the packaging process, the materials are filled into the packaging bags of the weighing system through a variable-frequency-controlled screw. When the filling weight reaches the preset quantitative value, the packaging machine stops feeding, and the packaging bags are removed by hand to complete a single-bag packaging. The weighing instrument of the FW type packaging machine can choose gross weight/net weight packaging.
