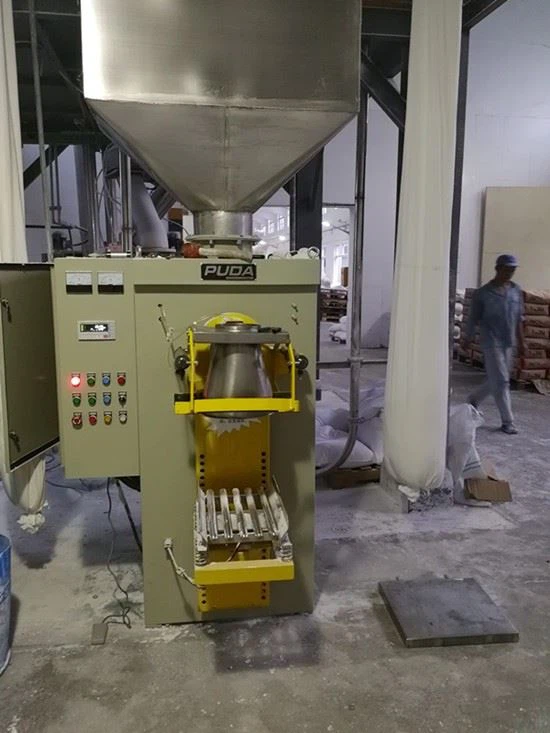

25kg Zirconium Silicate Packing Machine

25kg Zirconium Silicate Packing Machine  Made in China

System integration: PLC program control, automatic turntable valve, Chinese touch interface, weighing module measurement.

Scope of application: Full screw type can pack titanium dioxide, wet zirconium silicate, mica powder, precipitated barium, small particle powder, dry powder mortar, sealant and so on. Semi-screw type can package heavy calcium carbonate, heavy barium sulfate, quartz powder, starch, zinc calcium magnesium stearate, stabilizer, wax powder, color powder, magnesium and aluminum hydroxide, etc.

Technical data of this Packaging system:

1) Bagged products: dry powder

2) Bulk density :* 1.4kg/dm3

3) Charging device: automatic air blowing type

4) Number of packing ports :1(about 4 bags/min for each working position)

5) Weighing system: digital display

6) Empty bag feeding: manual

7) Bag unloading: automatic

8) Packaging bag type: self-sealing mouth breathable paper plastic composite bag

9) Weight of each bag: 10-50kg

10) Output: about 350 bags/hour (single mouth), depending on product type, loading weight and operator's proficiency.

PUDA features of 25kg Zirconium Silicate Packing Machine:

1. High precision, fast speed, long life, good stability, manual bagging, automatic measurement.

2. Not restricted by packaging containers, suitable for use in situations where material varieties and packaging specifications often change.

3. Double speed spiral feeding, electronic weighing, overcome the shortcomings of measurement errors caused by the change of material specific gravity.

4. The digital display is simple and intuitive, the packaging specifications are continuously adjustable, the working state can be changed arbitrarily, the operation is very simple.

5. The dust removal interface or dust collecting device designed by our company can be equipped at the mouth of the bag for the materials which are easy to produce dust.

6. frequency conversion speed regulation function, electronic automatic measurement technology, controlled by PLC program, can completely solve the ultrafine powder filling, with accurate measurement, no dust and other characteristics.
