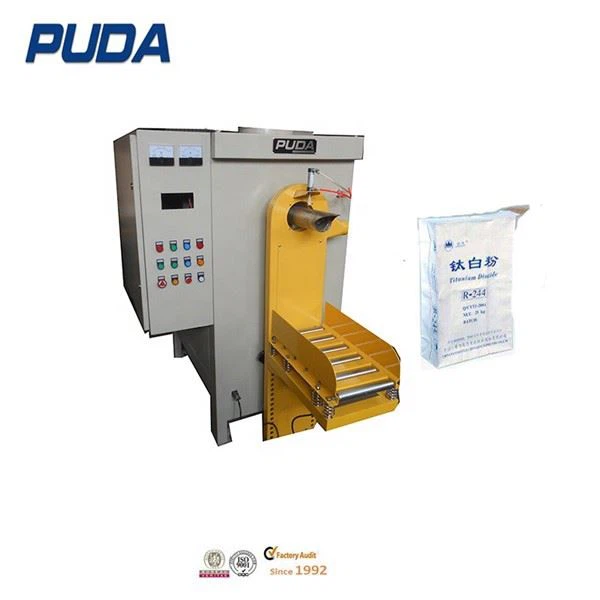

Automatic 50kg Valve Bag Filling Machine
Description of Automatic 50kg Valve Bag Filling Machine:
This series of machines are designed for packing materials in powder or flake into valve bags, the advantages are low dusty and high accuracy. Representative materials are Flour, Titanium, Alumina, Kaolin, Lime Carbonate, Bentonite, Dry Mortar, and etc.
Packing capacity: 10 ~ 50Kg
Accuracy Class: 0.1-0.2%
Packing speed: 250 to 400 bags / hour
Bags: valve bag
Air pressure:0.4-0.8MPa
Working temperature: 0 ℃ ~ 50 ℃ Relative Humidity: 95% (non-condensing)
Supply voltage: AC220V 50Hz
Maximum power: 0.1KW
Consumption: 0.7m3 / min 1.4 m3 / min 2.1m3 / min
Dimensions: 650x1270x1600 1300x1270x1600 1300x1270x1600 1950x1270x1600
Equipment weight: about 600Kg 1200 Kg 1800 Kg
Note: Packing speed differences affected the material properties
Optional accessories:
1. Conveyor belt
2. Automatic Bag Machine
3. Auto bag falling device
4. The material: carbon steel or stainless steel
Main parts of Automatic 50kg Valve Bag Filling Machine:
Name: | Features
|
valve port | Using 304 stainless steel, parts are not easy to corrosion, more durable. |
Intelligent control panel | Chinese and English logo, easy to operate |
Weighing system | Ensure accurate weighing |
Screw shaft | Using 304 stainless steel, corrosion-resistant, fast feeding. |
Packaging and shipping: of Automatic 50kg Valve Bag Filling Machine
Fumigation-free wooden cases
Professional sea & air shipping experience
