Vacuum Exhaust Packaging Machine

Vacuum Exhaust Packaging Machine

https://youtu.be/QzhpTAYGsN4

Core Function and Working Principle：
The vacuum powder packaging machine adds a vacuum system to the ordinary powder packaging machine, aiming to solve the problems of dust flying and material oxidation.
‌Vacuum degassing and dust prevention‌: The equipment creates negative pressure in the vacuum chamber using a vacuum pump, drawing the material into the bag or removing the air inside the bag, simultaneously removing the air between the powder particles, significantly reducing the packaging volume and improving the bulk density, and effectively preventing dust from spilling out.

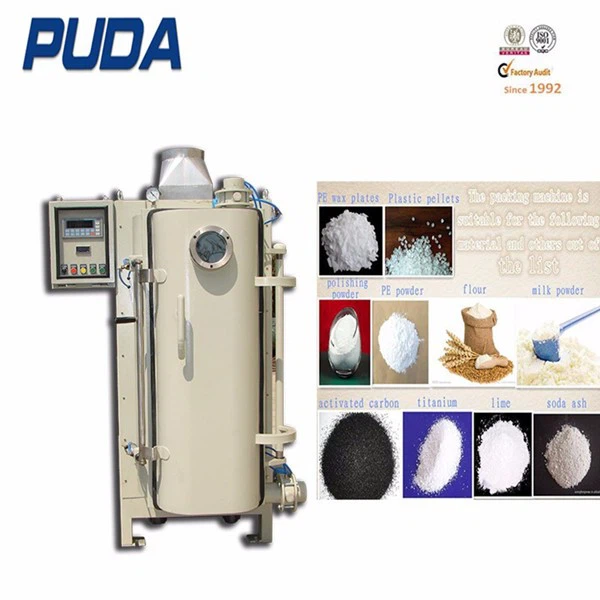

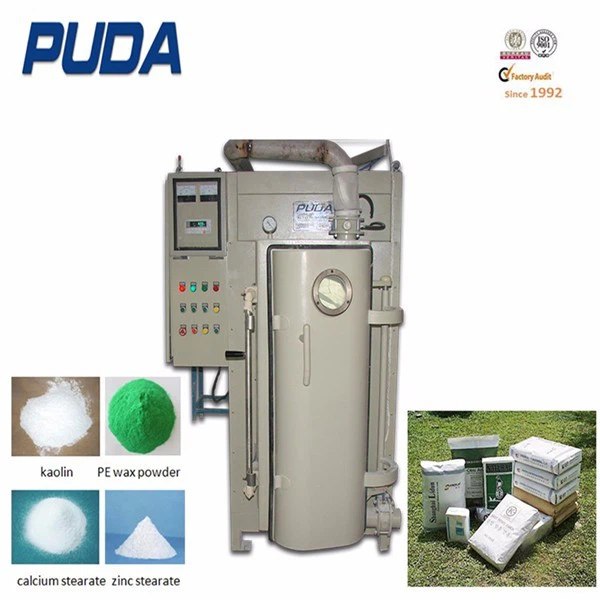

Adapted materials:  Suitable for positive and negative electrode materials of lithium batteries, ultra-fine graphite powder, pigments, metal powders, and various chemical raw materials, especially high-value or powder materials that require strict pollution isolation.

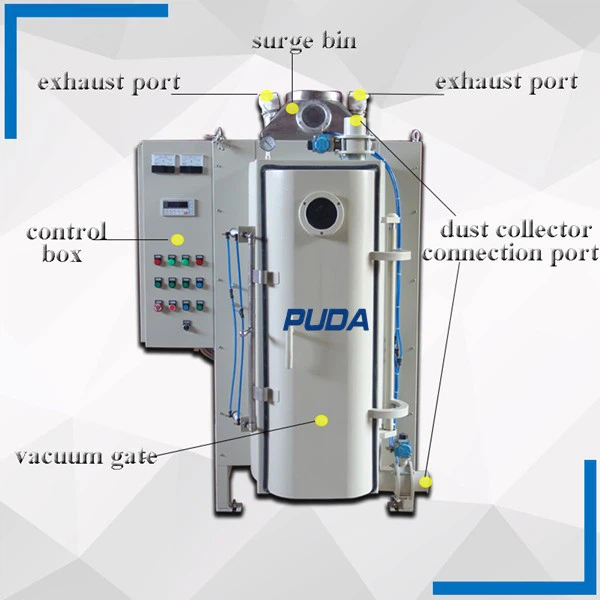

Structural features:

Feeding method: Vacuum suction or negative pressure exhaust design
Measurement structure: Gross weight measurement structure and net weight measurement structure
Packaging containers: Open packaging bags, packaging boxes, packaging barrels
Control functions: Intelligent weighing, automatic zeroing, fast/slow feeding, drop correction, out-of-specification alarm, fault self-diagnosis, manual/automatic mode switching, automatic bag release, automatic hook release, emergency stop, communication interface.

Technical Specifications:

Work capability: 200 - 300 bags/h
Packaging specifications: 20 - 50 kg/bag
Accuracy grade: < ±0.2% (for special materials, according to national or industry standards)
Power supply: 380/220VAC 50HZ
Air source: Pressure 0.5 - 0.8 MPa, gas consumption 5 - 8 m3/h
Dust removal air volume: 1500 - 3000 m3/h (adjustable)
Environmental requirements: Temperature -10 - 40℃, humidity < 80%

PUDA features:

1. Compact structure. The entire machine has a compact, sturdy, well-designed and simple structure.

2. Stable performance, equipped with imported PLC and fully computerized control system, featuring a color touch screen.

3. Easy to operate, high efficiency, long service life, convenient and fast.

Selection and Technical Parameter Reference
When purchasing a vacuum powder packaging machine, in addition to the price, the following technical indicators should also be given careful attention to ensure that the production requirements are met.
1. Packaging accuracy and speed: The small-dose model can achieve a packaging speed of 1500-2500 bags per hour, while the large-bag model is approximately 30-120 bags per hour. The measurement accuracy is usually within ±0.5%. For high-precision requirements, servo motors and electronic weighing systems need to be selected.
2. Material and Hygiene Standards: The parts in contact with the materials should be made of high-quality stainless steel (such as 304 or 316 grade), to prevent corrosion and contamination. For the pharmaceutical industry, it is necessary to confirm whether it complies with GMP certification requirements.

3. Core Component Configuration: The pumping capacity and stability of the vacuum pump directly determine the vacuum effect. It is recommended to pay attention to whether a dust removal system and explosion-proof motor are equipped, in order to ensure the safety of the workshop environment and the durability of the equipment.
